VS4000 LED Grow Light Review: PPFD, Coverage, and Worth It

The VIVOSUN VS4000 is a 400W Samsung LM301-based LED grow light designed to cover a 4x4 ft tent. At roughly $240 on sale, it delivers a claimed 2.9 μmol/J efficiency, full-spectrum output from 380 to 780 nm with emphasized 660 nm and 730 nm peaks, and a four-step dimmer with daisy-chain controller support. For a mid-range board light in the 4x4 class, it performs well enough for veg and early flower, though real-world heat output and a few reliability reports from the community mean it is not a no-brainer buy without some caveats.

What the VS4000 actually is

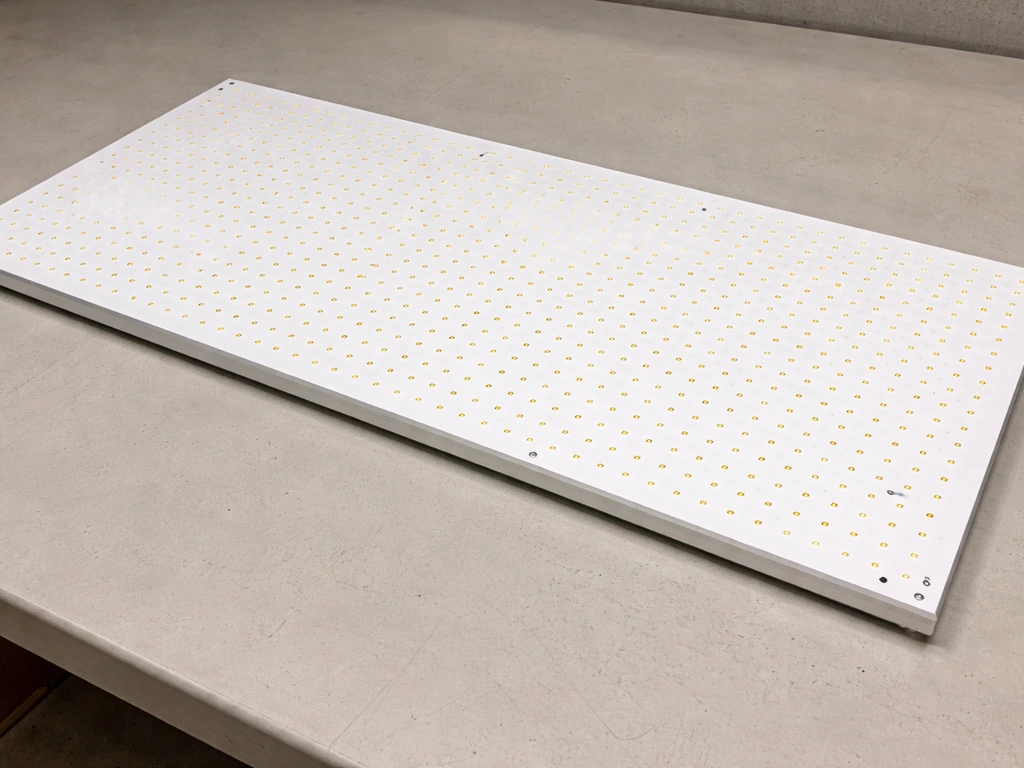

VIVOSUN markets the VS4000 as part of their VS Series, sitting above the VS2000 and VS1000 in output and footprint. It is a flat board-style LED panel, not a COB or bar-style light, measuring 23.5 x 19.7 inches (60 x 50 cm) and weighing 17.46 lb (7.92 kg). The driver is built-in, which keeps the setup clean but means any driver failure requires returning the whole unit. VIVOSUN also markets this light under the LumaLight 400W name in some regions and retail channels (including Home Depot in Canada and the US), so if you see that branding on a 400W full-spectrum board from VIVOSUN, it is effectively the same product.

Specs that actually matter

The 2.9 μmol/J efficiency claim is solid for a board light at this price point. Samsung LM301-series diodes are a proven choice used by many reputable brands, and the LM301H variant is a slight step up in efficiency over the base LM301B. The EXT dimming mode is genuinely useful: you can daisy-chain multiple VS series lights and control them from a single VIVOSUN GrowHub controller via an RJ11 cable, though some users have reported needing an adapter or specific cable configuration to get it working reliably when no VIVOSUN AeroLight or AeroZesh fan is in the loop.

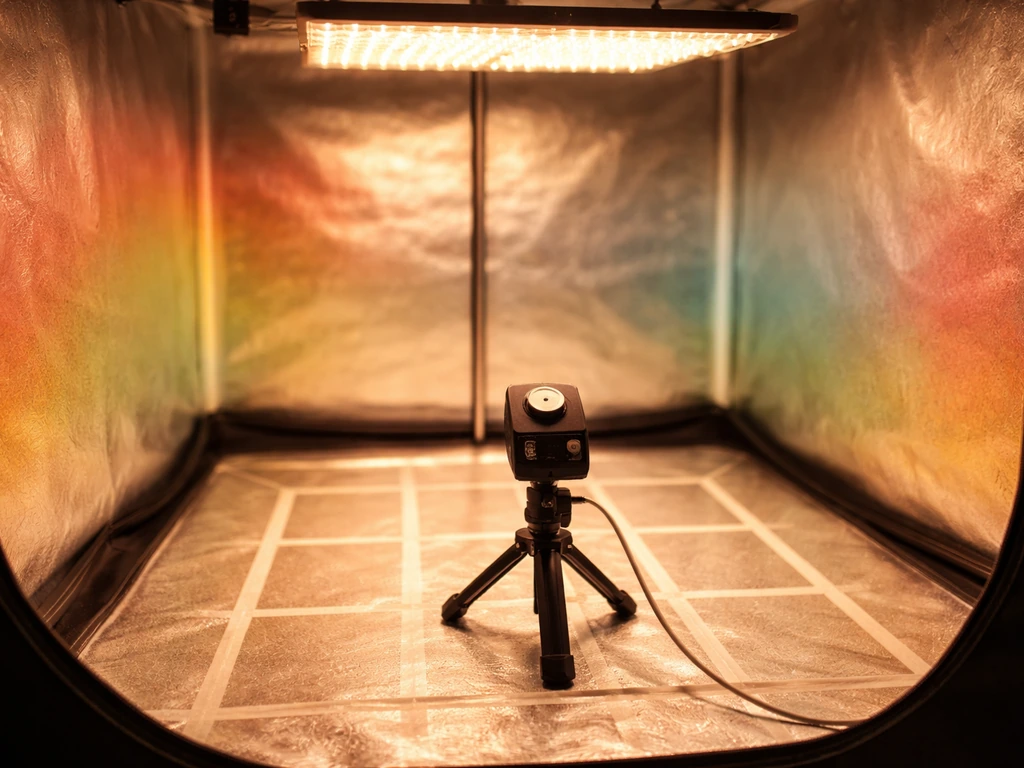

Real-world PPFD output and uniformity

VIVOSUN does not publish a detailed third-party verified PPFD map for the VS4000 with numeric grid values at standard heights, which is a transparency gap compared to brands like Spider Farmer and AC Infinity that publish full PAR maps. If you want more transparency with a detailed PPFD map before you buy, you can also check Spider Farmer LED grow light review style tests that publish fuller PAR data. If you are cross-shopping, this is where a Spider Farmer grow light review can help you compare transparency in PPFD data and real-world edge performance. What we do have: a user-reported PPFD map reference at 18 inches hanging height, a GrowPackage PAR map (sourced from VIVOSUN's own data rather than independent meter testing), and VIVOSUN's own stage-based PPFD targets. Working from those targets and the 2.9 μmol/J efficiency figure, here is how to frame expected output:

At 100% power from 18 inches over a 4x4 ft canopy, the center reading sits comfortably in the 700–900 μmol/m²/s range based on community reports, with edge readings dropping off more noticeably than on bar-style lights. The board format concentrates output in the center, so uniformity across a full 4x4 is decent but not exceptional. For comparison, the ViparSpectra XS-4000 (a direct competitor in this class) measured a maximum of 972 μmol/m²/s in independent 4x4 testing, which gives you a useful benchmark. The VS4000 is in the same ballpark at the center but may trail slightly at the edges of a 4x4 canopy.

For a 3x3 area, the VS4000 delivers noticeably better uniformity and higher average PPFD across the canopy, making it a strong choice if you are running a 3x3 tent and want headroom for high-light demanding plants in flower. The 4x4 coverage claim is achievable for veg, but for late flower you will want to either accept some edge light variation or train your plants to keep the canopy centered.

Build quality, heat, and noise

The VS4000 has a solid aluminum heat sink that feels well-built for the price. At 17.46 lb it is heavier than many comparable boards, which actually speaks to the thickness of the heatsink material. The panel does not have any active cooling fans, which keeps noise at zero during operation. This is a genuine plus for home growers who want a quiet environment.

That said, the fanless design means heat management falls entirely on passive dissipation and your tent's ventilation. Multiple VS4000 owners have noted it gets noticeably warm at full power, and the recommendation from the community is consistent: make sure you have strong airflow moving across the light, not just exhausting from the tent. If your inline fan and ducting are undersized for the tent, the VS4000 at 100% will raise ambient temps more than a bar-style light with active cooling would. This is not a dealbreaker, but it is something to plan for.

Build quality is generally good, with no reported widespread issues around diode quality or connector failures at the hardware level. The main reliability concern that shows up in community threads is occasional driver failure, with at least some users reporting the light failing within a few months of use. VIVOSUN's 5-year warranty covers manufacturing defects, so a driver failure should be covered, but turnaround time on warranty claims is worth checking before you commit.

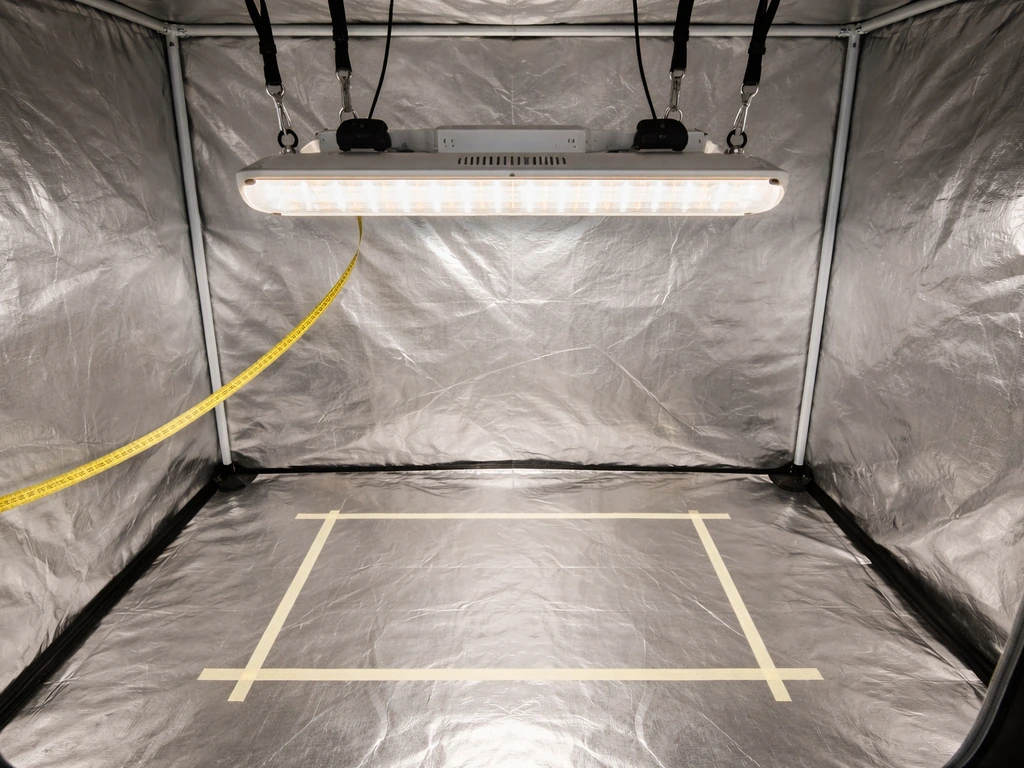

Setting up the VS4000: height, spacing, and coverage planning

Hang the VS4000 centered over your canopy using the included ratchet hangers. The official guidance by growth stage is your starting point, but here is how to apply it practically:

1. Germination and seedlings: Start at 30 inches (76 cm) with dimmer at 25%. Seedlings need light but not intensity; this avoids stretching while keeping temperatures manageable.
2. Vegetative growth: Drop to 18–24 inches (46–61 cm) and run the dimmer at 50–75%. Watch for any leaf cupping or bleaching at the center of the canopy, which signals you are too close or too bright.
3. Early flower: Move to 15–18 inches (38–46 cm) at 75–100%. Plants in flower are more light-hungry, and this range gets you into the 500–700 μmol/m²/s sweet spot across most of the canopy.
4. Late flower: Keep at 12–18 inches at 100%. Check edge plants regularly; if they are visibly less developed, consider training or rotating pots to even out light exposure.
5. Heat check: After running at 100% for 30 minutes, put your hand 6 inches above the canopy. If it feels uncomfortably hot, raise the light by 2–3 inches or increase exhaust fan speed before adjusting anything else.

For tent sizing: the VS4000 is best matched to a 3x3 or 4x4 tent. In a 2x4 ft space it will over-light the center unless you run it at 50% or lower, which wastes the fixture's capacity. In a 5x5 tent, the edges will be noticeably underlit during flower, even at 100% power. If you are running multiple lights in a larger space, use the EXT mode and GrowHub controller to synchronize them rather than trying to manage each light independently.

Best use cases and real limitations

Where the VS4000 works well

• 3x3 tent growers who want more headroom than a 200–250W light provides
• 4x4 veg grows where uniform coverage matters more than peak intensity
• Growers who already use VIVOSUN's ecosystem (GrowHub, AeroLight fans) and want seamless controller integration
• Budget-conscious buyers who want Samsung LM301 diodes without paying Spider Farmer or AC Infinity pricing
• Quiet grows: the fanless passive design produces zero operational noise

Where it falls short

• Full 4x4 ft flower grows where you need high uniformity at the edges: bar-style lights distribute output more evenly
• Hot or poorly ventilated grow rooms: the passive heat sink needs airflow to do its job
• Growers who want third-party verified PPFD maps before buying: VIVOSUN's data transparency lags behind Spider Farmer and AC Infinity
• Anyone needing a truly set-and-forget light: the dimming controller compatibility has occasional quirks that require troubleshooting
• Commercial or high-yield growers pushing plants to their photosynthetic limits: the ViparSpectra XS-4000 and AC Infinity IONBOARD S44 offer higher ceiling PPFD in the same class

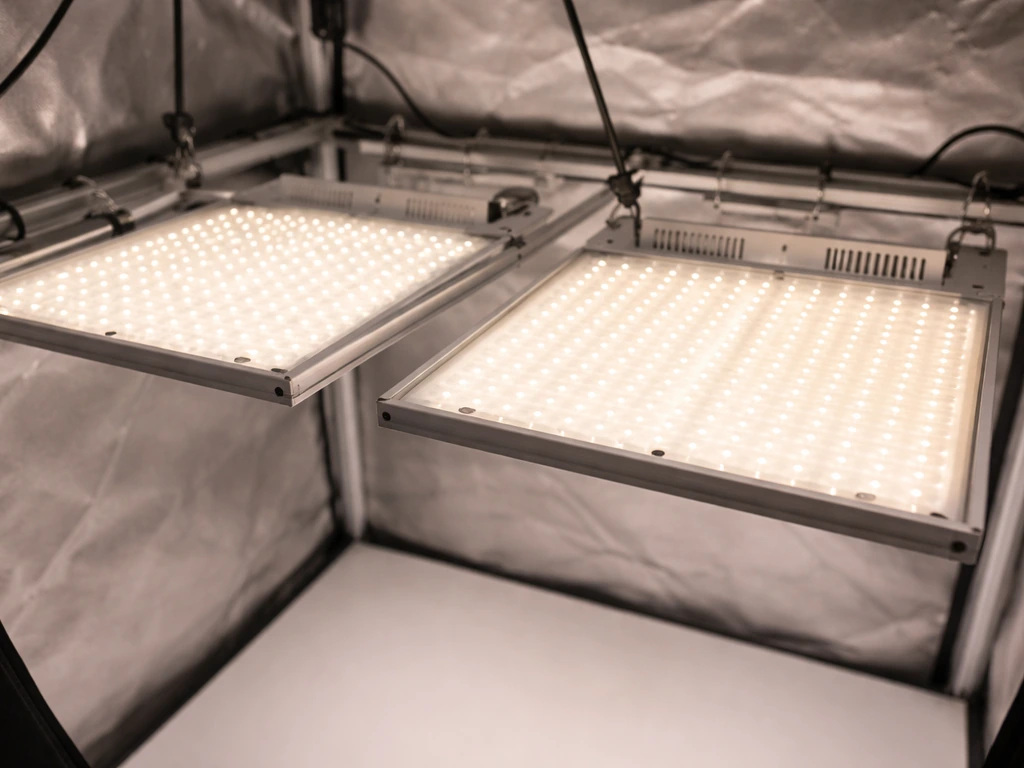

How it compares to similar lights

The 4x4 board light category is competitive right now. Here is an honest side-by-side with the lights most likely to be on your shortlist:

The ViparSpectra XS-4000 is the VS4000's most direct price competitor and has independently tested PPFD data available, which gives it a transparency edge. The AC Infinity IONBOARD S44 costs more but integrates controller functionality natively and tends to perform better at the edges of a 4x4 canopy. Spider Farmer's lineup (reviewed separately on this site) offers strong documentation and build consistency, but you pay a premium for it. The VS4000 holds its own on paper efficiency and is a solid choice if price is the primary lever and you are already in the VIVOSUN ecosystem.

If you are comparing the VS4000 to VIVOSUN's own smaller models like the VS2000 or VS1000, the jump to the VS4000 is worthwhile if and only if you are running a 3x3 or 4x4 space. If you are specifically considering the smaller VS1000 instead, you can see our VS1000 LED grow light review for the key differences in output, coverage, and value. If you are specifically considering the vs2000 led grow light review highlights, compare its coverage and dimming needs against the VS4000’s 3x3 to 4x4 sweet spot. For a 2x2 or 2x4, the VS2000 is better matched and will run cooler with less dimming needed.

Is the VS4000 worth buying right now?

At $240 on sale, the VS4000 delivers genuine Samsung LM301 diode quality, a claimed 2.9 μmol/J efficiency, and solid veg-through-flower performance in a 3x3 or 4x4 tent. The 5-year warranty is better than most in this price range. The main trade-offs are: passive heat management that requires good tent ventilation, a light distribution pattern that is less uniform at 4x4 edges than bar-style competitors, limited third-party verified PPFD data, and a handful of community reports about controller compatibility quirks and occasional early driver failure.

The VS4000 is a good buy for growers who want a capable, quiet Samsung-diode board at mid-range pricing and are comfortable managing heat through their ventilation setup. It is not the best choice if edge uniformity in a full 4x4 flower is your priority, or if you want fully transparent third-party-tested data before buying.

Before you buy: a practical checklist

Run through these before clicking purchase to confirm the VS4000 fits your specific setup:

1. Measure your tent footprint. The VS4000 is optimized for 3x3 to 4x4 ft. If your tent is 2x4 or smaller, consider the VS2000 instead. If it is 5x5 or larger, plan on two lights.
2. Check your vertical clearance. The VS4000 needs 12–30 inches of hang height above the canopy depending on stage, plus the light's own 3.23-inch height. Make sure your tent has enough headroom for taller plants in flower.
3. Estimate your target PPFD. Use VIVOSUN's targets: 300–500 μmol/m²/s for veg, 700–1000 for late flower. If you are growing high-light strains that push toward 1000+, factor in that you may need supplemental lighting at the edges of a 4x4.
4. Audit your ventilation. The VS4000 runs warm at 100%. If your current exhaust fan is already working hard to manage tent temps, add an additional clip fan or upgrade your inline fan before the light arrives.
5. Decide on controller use. If you want automated scheduling and dimming, budget for the VIVOSUN GrowHub controller separately. Check that you have the right RJ11 cable or adapter for your configuration before your first grow.
6. Check the return and warranty policy for your region. VIVOSUN offers 30-day free returns and a 5-year warranty on manufacturing defects, but confirm the process for your country, especially if buying through a third-party retailer like Home Depot.
7. Compare the current price against the ViparSpectra XS-4000 and AC Infinity IONBOARD S44. If the VS4000 is within $20–30 of those options at the time you are buying, the XS-4000 has verified PPFD data and the IONBOARD S44 has better controller integration, making them worth the small premium.
